To enable the Mastercam Advance Drilling cycle in CAMplete TruePath, please follow the steps below.
- Open CAMplete TruePath.

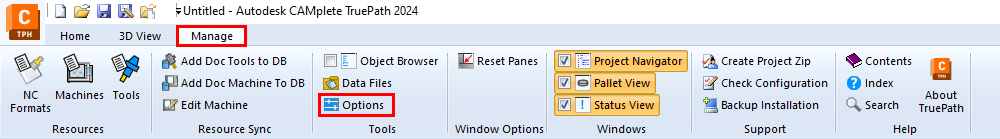

- In the Ribbon Bar, go to Manage > Options.

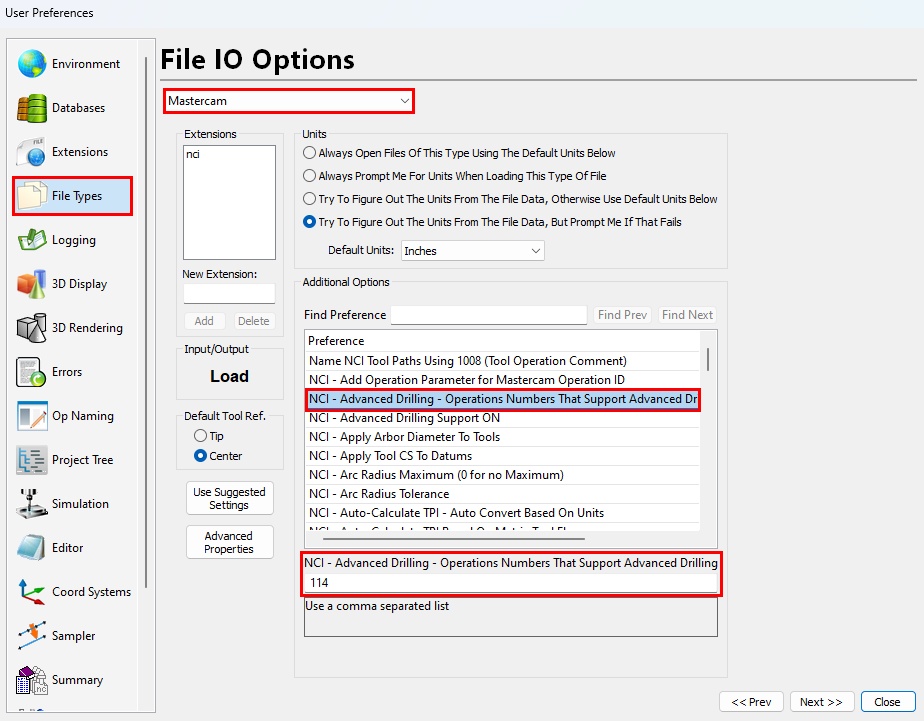

- In the User Preferences, click File Types, then in the dropdown menu, select Mastercam. In the Additional Options section, find 'NCI - Advanced Drilling - Operations Numbers That Support Advanced Drilling'. Type in 114.

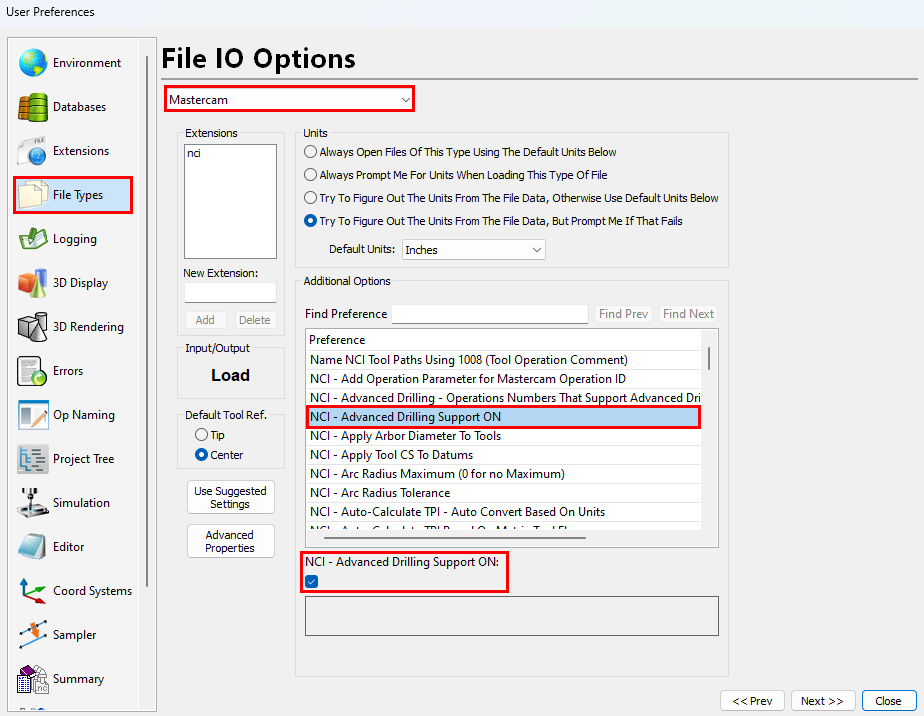

- Next, find 'NCI - Advanced Drilling Support ON'. Check the box below.
- Once checked, close the User Preferences.
- You will need to start a new project or re-import the .NCI file to see any changes.
