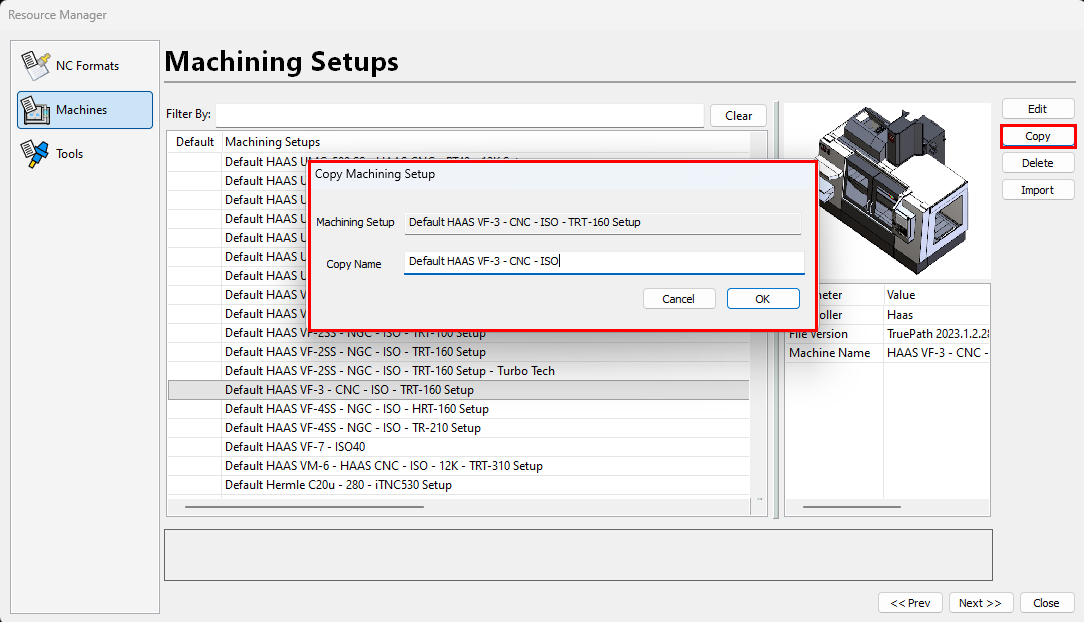

• Make a Copy of the Haas machine and rename.

    A screenshot of a computer
Description automatically generated with medium confidence

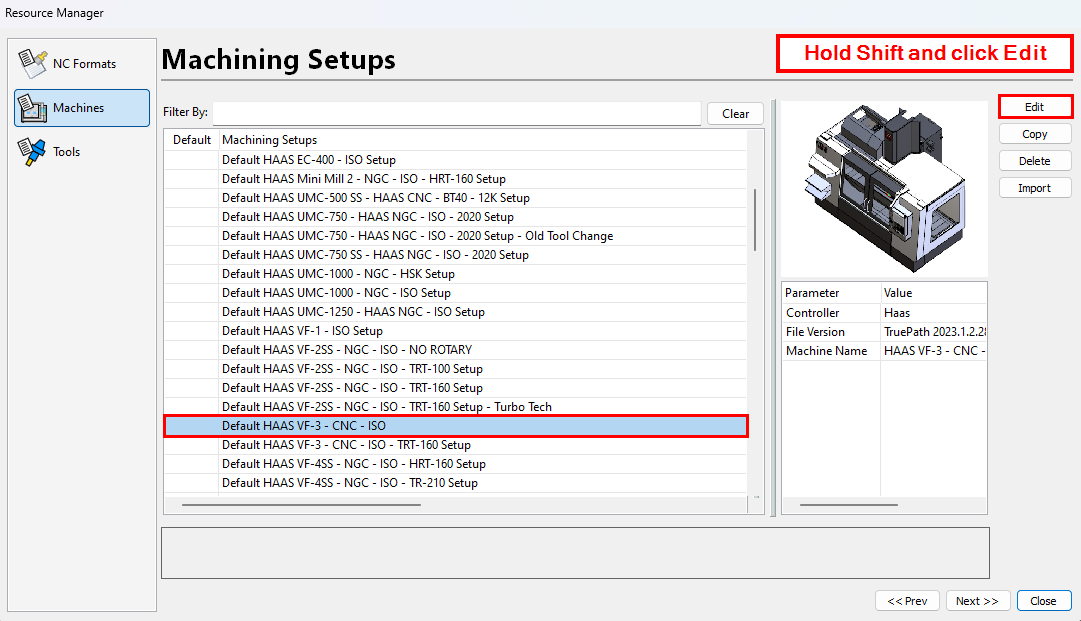

  • Select the machine that was copied. While holding Shift, click on Edit.

    A screenshot of a computer program
Description automatically generated with medium confidence

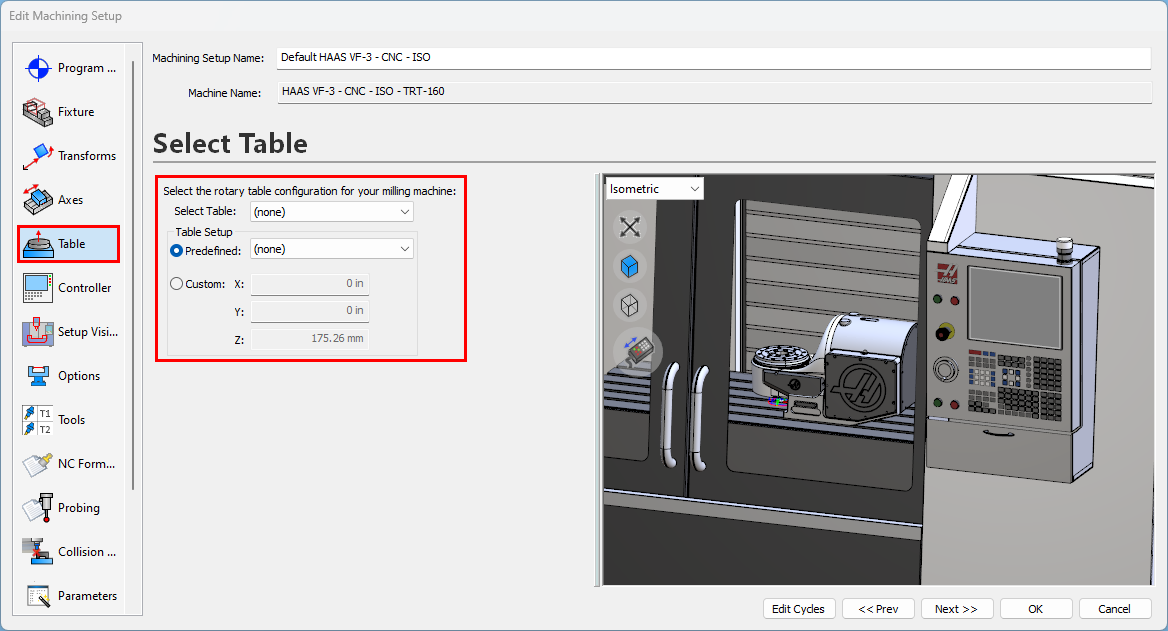

  • In the Table section of the Edit Machining Setup dialog, click the drop-down menu for Select Table and select (none). In the Table Setup, select Predefined: (none).

    A screenshot of a computer
Description automatically generated with medium confidence
  • Click OK at the bottom left of the dialog window.



You now have a Haas machine without the bolt on rotary. This machine setup can now be used as a 3-axis mill.
